In industries requiring solid-liquid separation or material compression, two machines often come into consideration: the screw press and the hydraulic press. While both are designed to apply pressure to process materials, they operate on different principles and are suited to distinct applications. This article compares the screw press and hydraulic press in terms of their working mechanisms, advantages, disadvantages, and ideal use cases to help you choose the right equipment for your needs.

What is a Screw Press?

A screw press is a mechanical device that uses a rotating screw (auger) within a cylindrical screen or chamber to compress materials and separate liquids from solids. As the screw turns, it gradually applies pressure, pushing the material forward and forcing liquid out through perforations while retaining the solid content. Screw presses are commonly used for continuous dewatering or pressing processes.

Key Features of a Screw Press

• Continuous operation with steady material flow.
• Low to moderate pressure, depending on the design.
• Compact design with a relatively small footprint.
• Typically used for dewatering sludge, food waste, biomass, or extracting oils.

What is a Hydraulic Press?

A hydraulic press operates using hydraulic fluid to generate high compressive force through a piston or ram. The material is placed in a chamber or mold, and the hydraulic system applies intense pressure to compress or shape it. Hydraulic presses are versatile and widely used for tasks requiring high force, such as metal forming, molding, or juice extraction.

Key Features of a Hydraulic Press

• Batch or semi-continuous operation.
• Capable of generating extremely high pressure (up to thousands of tons).
• Larger and more robust design compared to screw presses.
• Commonly used for pressing fruits, forming metals, or compacting materials.

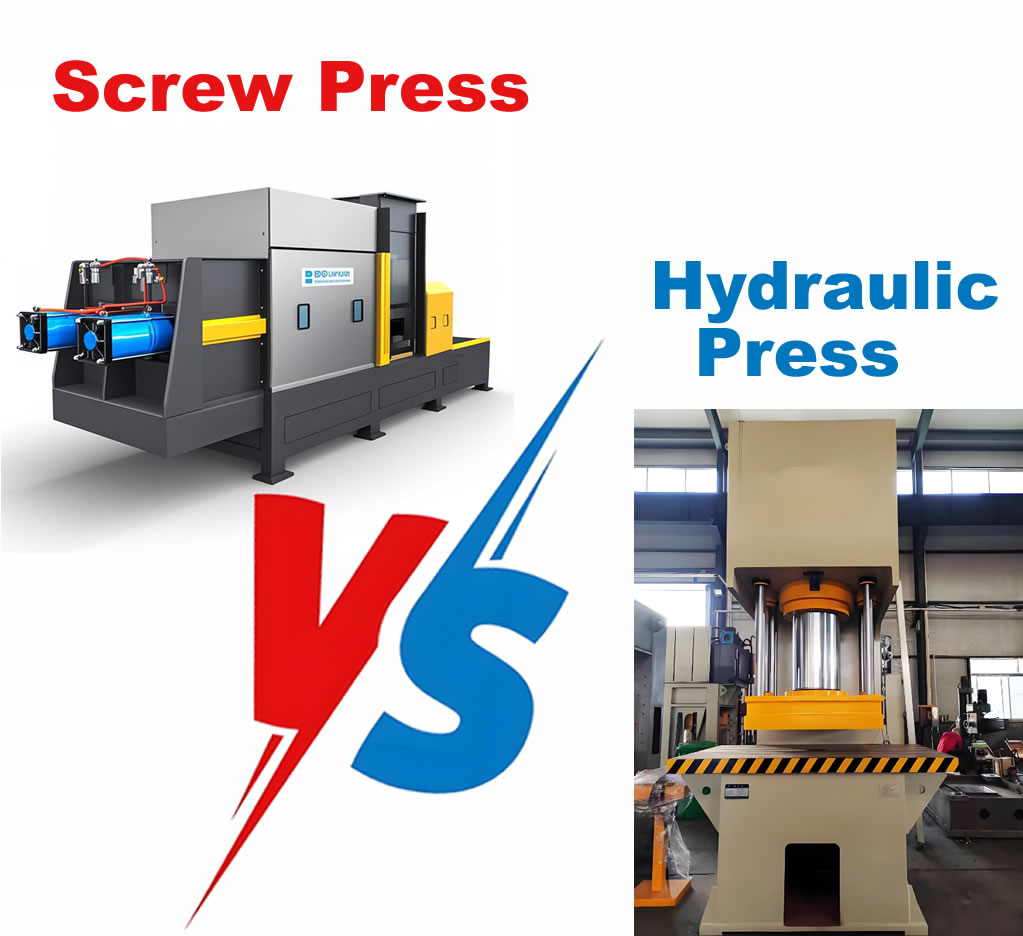

Screw Press vs. Hydraulic Press: A Side-by-Side Comparison

To better understand the differences between these two machines, let’s compare them across several key factors:

1. Operating Mechanism

• Screw Press: Uses a rotating screw to apply gradual, consistent pressure. The continuous motion ensures a steady throughput, making it ideal for processes requiring ongoing material processing.
• Hydraulic Press: Relies on hydraulic fluid to drive a piston, delivering high force in a single stroke or cycle. It operates in batches, requiring material to be loaded and unloaded between cycles.

Winner: Depends on the need—screw press for continuous processing, hydraulic press for high-force batch tasks.

2. Pressure Capability

• Screw Press: Generates moderate pressure, sufficient for dewatering or light compression tasks. The pressure is limited by the screw’s design and motor power.
• Hydraulic Press: Excels at delivering extremely high pressure, making it suitable for heavy-duty applications like metal forging or pressing dense materials.

Winner: Hydraulic press for high-pressure needs.

3. Energy Efficiency

• Screw Press: Consumes less energy due to its simpler mechanical design and continuous operation. It’s an economical choice for long-term use in low-to-moderate pressure applications.
• Hydraulic Press: Requires significant energy to operate hydraulic pumps, especially for high-pressure tasks. Energy costs can be higher, particularly for frequent use.

Winner: Screw press for energy efficiency.

4. Applications

• Screw Press: Best suited for dewatering (e.g., wastewater sludge, manure, food waste), oil extraction (e.g., seeds, olives), and biomass processing. Its continuous operation makes it ideal for high-volume, low-pressure tasks.
• Hydraulic Press: Preferred for applications requiring intense force, such as metal forming, molding plastics, pressing fruits for juice, or compacting materials like wood or scrap metal.

Winner: Depends on the application—screw press for dewatering, hydraulic press for high-force pressing.

5. Maintenance and Durability

• Screw Press: Features fewer moving parts and a simpler design, leading to lower maintenance needs. However, the screw and screen may wear out over time, especially with abrasive materials.
• Hydraulic Press: Involves complex components like hydraulic pumps, seals, and valves, which require regular maintenance to prevent leaks or failures. Durable but costly to repair.

Winner: Screw press for lower maintenance.

6. Footprint and Portability

• Screw Press: Compact and lightweight, making it easy to install in facilities with limited space. Smaller models are portable for on-site use.
• Hydraulic Press: Typically larger and heavier due to the hydraulic system and robust frame, requiring more space and a stable foundation.

Winner: Screw press for compactness.

7. Cost

• Screw Press: Generally more affordable, both in terms of initial purchase and operating costs. Suitable for businesses with budget constraints.
• Hydraulic Press: Higher upfront and operational costs due to its complex design and energy requirements. Best for applications justifying the investment.

Winner: Screw press for cost-effectiveness.

8. Processing Speed

• Screw Press: Offers continuous processing, ideal for high-throughput operations where consistent output is needed.
• Hydraulic Press: Slower due to its batch-based operation, as each cycle requires loading, pressing, and unloading.

Winner: Screw press for speed in continuous tasks.

Advantages and Disadvantages Summarized

Screw Press

Advantages:

• Continuous operation for high throughput.
• Energy-efficient and low maintenance.
• Compact and cost-effective.
• Versatile for dewatering and light pressing.

Disadvantages:

• Limited to moderate pressure applications.
• Less effective for hard or dense materials.

Hydraulic Press

Advantages:

• Extremely high pressure for heavy-duty tasks.
• Versatile for shaping, molding, or pressing dense materials.
• Precise control over force application.

Disadvantages:

• Batch operation slows processing speed.
• Higher energy consumption and maintenance costs.
• Larger footprint and higher initial cost.

Which One Should You Choose?

The choice between a screw press and a hydraulic press depends on your specific requirements:

• Choose a Screw Press if you need a cost-effective, energy-efficient solution for continuous dewatering or light pressing tasks. It’s ideal for industries like wastewater treatment, agriculture, or food processing where high volumes of soft or semi-solid materials are processed.
• Choose a Hydraulic Press if your application demands high force for tasks like metal forming, fruit juice extraction, or compacting dense materials. It’s better suited for industries requiring precision and power, even if it means slower, batch-based operation.

Conclusion

Both screw presses and hydraulic presses have their strengths, and neither is inherently "better" than the other—it all comes down to the task at hand. A screw press shines in continuous, low-to-moderate pressure applications, offering efficiency and simplicity. In contrast, a hydraulic press is the go-to choice for high-pressure, batch-based tasks requiring significant force. By evaluating your material type, production volume, budget, and operational goals, you can select the machine that best aligns with your needs, ensuring optimal performance and value for your investment.
