How does the design of the screw press dehydrator affect the squeezing efficiency and material juice yield?

The design of the screw press dehydrator has a significant impact on its squeezing efficiency and material juice yield. The following is a discussion of this impact from several key aspects:

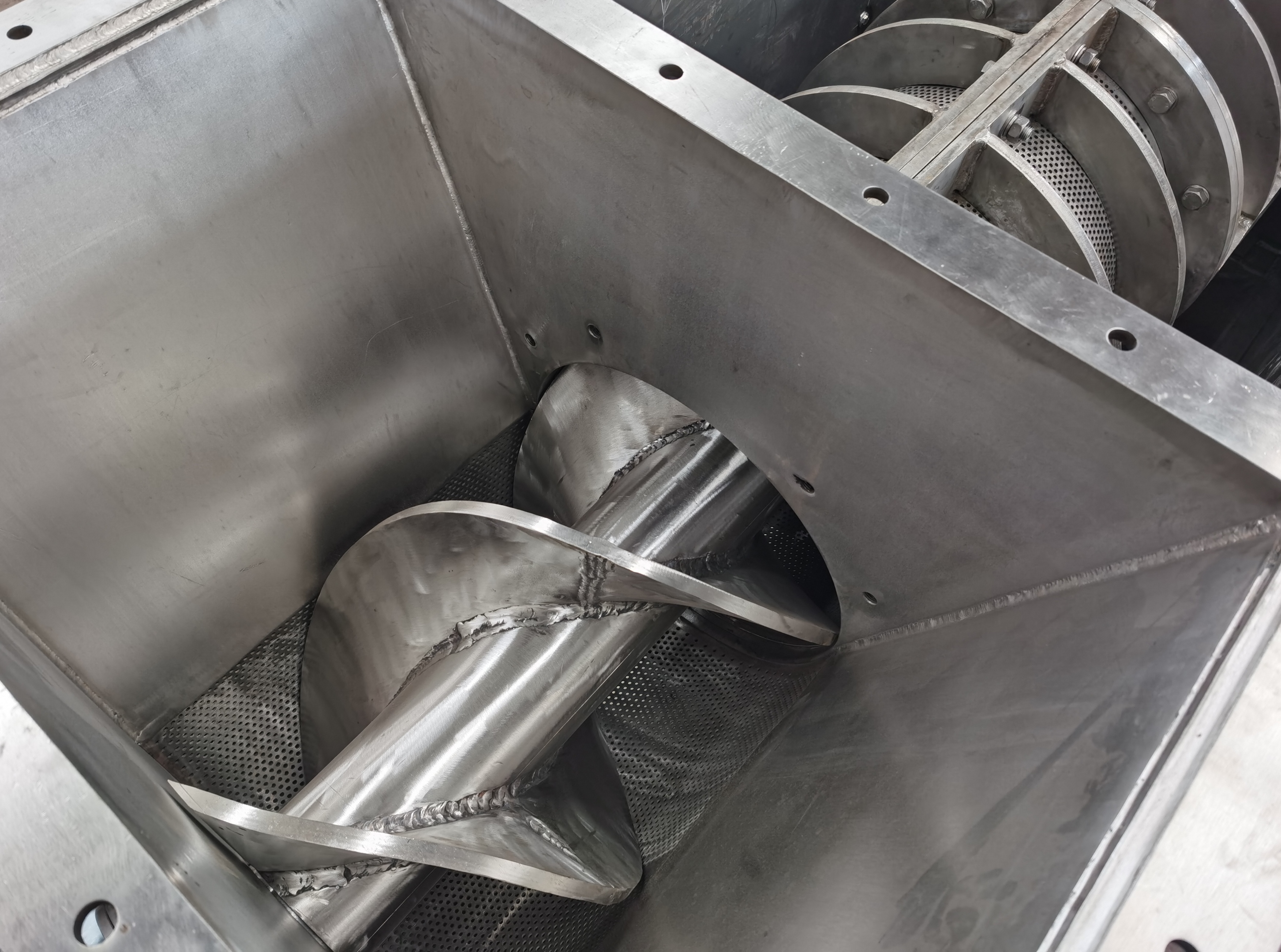

1. Screw design

Spiral shape and size: The shape (such as conical, cylindrical, etc.) and size (such as pitch, diameter) of the spiral directly affect the force and propulsion speed of the material during the squeezing process. Reasonable spiral design can ensure that the material is evenly distributed in the squeezing chamber and is subjected to sufficient pressure, thereby improving the squeezing efficiency and juice yield.

Spiral material and hardness: The material and hardness of the spiral determine its wear resistance and corrosion resistance, which in turn affects the service life and squeezing effect of the press. A high-hardness spiral can better crush the material and improve the squeezing efficiency, but it may also increase energy consumption and wear.

2. Pressing chamber design

Pressing chamber shape and size: The shape and size of the pressing chamber should match the spiral to ensure that the material can flow smoothly and be subjected to uniform pressure during the squeezing process. The size of the pressing chamber also determines the size of the processing volume, which in turn affects the overall production efficiency.

Filter or screen design: The design of the filter or screen determines the separation effect of solids and liquids in the material. Reasonable aperture and slit diameter can ensure that most of the liquid is effectively separated, while avoiding clogging and excessive wear of solid particles.

3. Transmission design

Motor and reducer: The selection of motor and reducer directly affects the speed and torque output of the press. Reasonable transmission design can ensure that the press runs in a stable working state and improve the squeezing efficiency and juice yield.

Transmission mode: The selection of transmission mode (such as direct drive, belt drive, etc.) will also affect the performance and efficiency of the press. Direct drive can reduce transmission loss and improve transmission efficiency; while belt drive has the function of buffering and shock absorption, which can protect the motor and press from impact.

4. Adjustment of operating parameters

Speed ​​and pressure: Speed ​​and pressure are two important operating parameters in the squeezing process. Appropriate speed and pressure can ensure that the material is subjected to uniform and sufficient pressure in the squeezing chamber, thereby improving the squeezing efficiency and juice yield. Excessive speed and pressure may lead to problems such as increased energy consumption, increased equipment wear and excessive material crushing.

Feeding amount and feeding method: The control of feeding amount and feeding method is also a key factor affecting the squeezing efficiency and juice yield. Reasonable feeding amount can ensure that the press runs in working condition; and appropriate feeding method (such as continuous feeding, intermittent feeding, etc.) can reduce the accumulation and blockage of materials in the pressing chamber.

5. Other factors

Material properties: The properties of the material (such as moisture content, viscosity, particle size, etc.) will also affect the squeezing efficiency and juice yield. Materials of different properties require different squeezing parameters and process flows to ensure the squeezing effect.

Equipment maintenance and care: Regular equipment maintenance and care can ensure the normal operation and optimal performance of the press. Worn spirals, filters or transmission parts should be replaced or repaired in time to avoid affecting the squeezing efficiency and juice yield.
